FLP(m)a+b多級挑擔屏蔽泵
Multistage Tandem canned motor pump FLP(m)a+b
FLP(m)a+b系列
產(chǎn)品名稱(chēng)：多級挑擔屏蔽泵
多級挑擔型、單吸、懸臂結構、底腳支撐
高壓外循環(huán)，屏蔽電機在中間，兩端葉輪，適合小流量，高揚程工況，替代高速泵
口徑：DN25~DN150
流量：~400 m3/h
揚程：~1000 m
工作溫度：-120~100 ℃
額定壓力：1.6~10MPa
功率：~200 kW
FLP(m)a+b Series

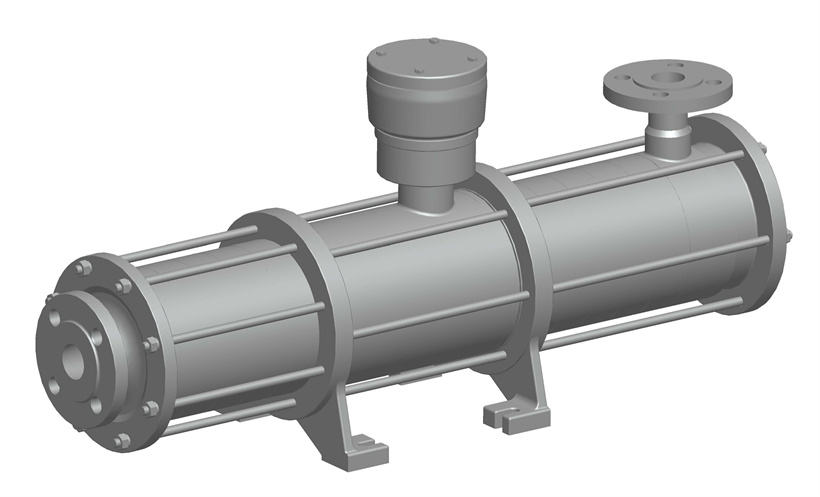

Product name: Multistage Tandem canned motor pump
Multistage Tandem type, single suction, cantilever structure, supported by foot
It makes external circulation at high pressure.
Equipped with canned motor in the middle, and impeller on both ends.
working condition: with a low capacity, a high head, and The multistage Tandem pump in replacing the high-speed pump is adopted.
Diameter:DN25~DN150
Capacity:~400 m3/h
Head:~1000 m
Operating temperature:-120~100 ℃
Rated pressure:1.6~10MPa
Power:~200 kW
